STONIMAGE shipbuilding gantry crane owns two winch trolley system traveling on double beam to achieve all motion for shipbuilding, the weight of crane from Stonimage's design is 20%~35% lighter than others, also owns stepless speed control and full safety system, that means you can purchase our crane by a lower budget and use it with lowest maintenance cost.

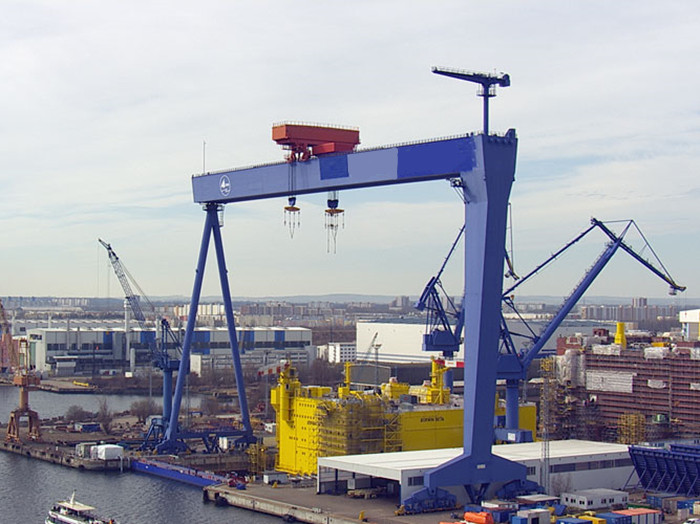

Goliath Crane, Gantry Crane for Ship Building Project

F.E.M Standard Design

Gantry crane usually also called RMG crane, is crane with a hoist traveling along the railway. Double girder gantry crane is a crane with two girders for heavy load 10~900 tons. Gantry crane are designed to meet the industrial requirements from light to heavy lifting requirements, covering all parts of the manufacturing area and process and goods transportation.

STONIMAGE gantry cranes offer both standard cranes and advanced services system, are designed as F.E.M. standard. STONIMAGE RMG cranes consist of a wide range of cranes including hoisting winch with lifting capacity up to 900 tons, Open winch trolley hoists up to 900 tons as well as cranes specifically designed for hazardous environments and anti-explosion condition. With our overhead crane system you will have total control over material handling in your production process.

Cranes designed to adapt to your facility

STONIMAGE FEM standard Gantry Cranes are good at in using the available space of your factor. Our industrial gantry cranes are available to be equipped with an hoisting winch and more, also equipped with grab and special customed spreader. Also is available to install on your existing railways. They are typically used in general manufacturing, assembly, workshops, warehouse, automotive, pulp & paper, mining, power, waste to energy and steel industries for various purposes.










Standard Warranty Policy  - Download

*Valid for all brand new cranes which designed, manufactured and supplied by stonimage.
