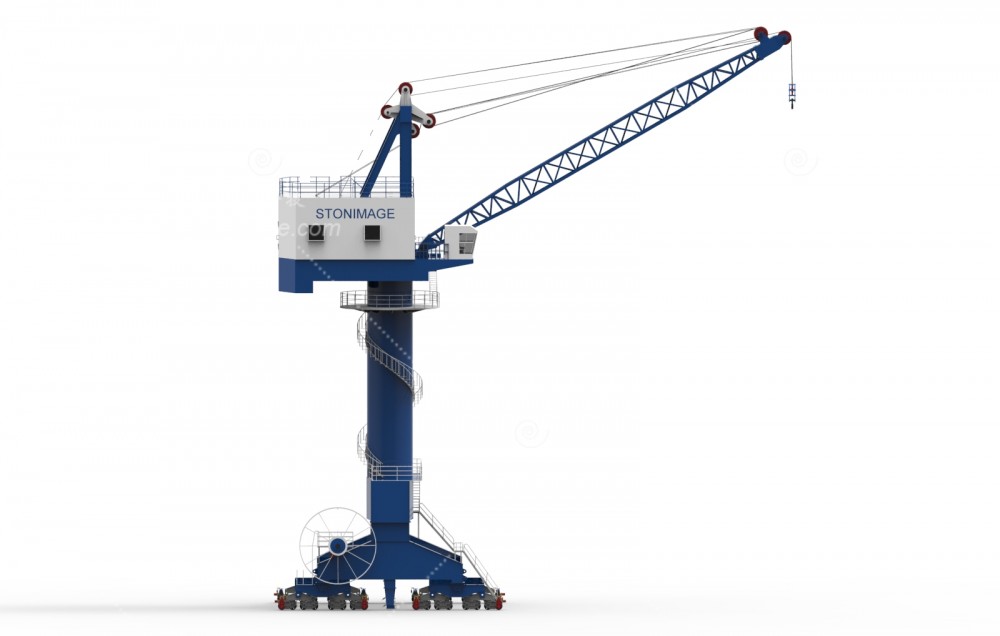

Shipyard Jib Crane, lifting capacity from 20t to 800t

for Ship Building, Repairing



Shipyard jib crane usually also called portal jib crane, we design it with single boom with level luffing system to balance the load, this crane is very useful in jetty, dry dock, slipway and wharf for ship building, ship repair and lifting job of goods.



Standard Design



· Lifting capacity: 20 ton to 800ton, designed as client's demand

      · Outreach from 8m to 120m

      · Lifting height from 20m to 100m above rail, 10m to 50m under rail

· Ergonomically designed Cabin for operator

· Smart & safety walkway and ladders

· Monitoring system for loading situation, wind factors, fault display, alarm control in cabin

· 4 travel motion alarms

· Minimized wind pressure and wheel load

· Berthing anchor system

· Power-off automatic rail clamping system

· Full frequency converters system

· Real time monitoring for traveling condition

· Center lubrication system

· Programmable PLC Electronic Control System

· Electronic, stepless speed, infinitely variable controls for hoisting, traverse and travel.

· Customized spreader beam/lifting tools













· Outreach from 6.m to 120m
